AEM X-Series OBDII AFR wideband sensor controller with gauge for gen 6 2016-2024 Chevrolet Camaro V6 , SS , ZL1

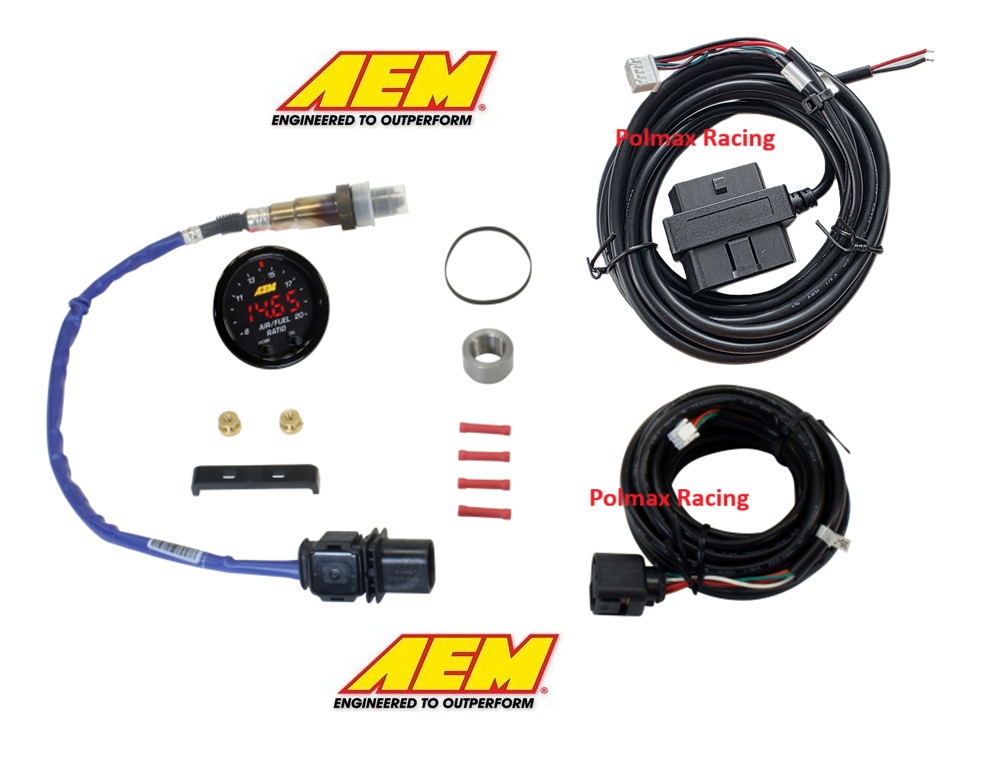

Description AEM X-Series OBDII Air/Fuel ratio wideband sensor controller gauge with OBDII pass-through connector for gen 6 2016-2024 Chevrolet Camaro [ fits all models of Camaro 2.0 turbo , V6 , 6.2 LT1 V8 SS , ZL1 6.2 supercharged LT4 AEM’s X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge provides tuners who are using piggyback tuning modules or open source software with the ability to view AFR through the factory CAN-bus stream that is output by the factory ECU, and deliver the most accurate, safe and powerful tune. The  X-Series OBDII Wideband Gauge is validated to work with DiabloSport in Tune 3, Trinity 2, EFILive, HPTuners and DashDaq software.The X-Series Wideband AFR OBDII Gauge includes an OBDII pass-through connector and 4.9LSU sensor that can be free-air calibrated or used with the factory resistor calibration. Additional wiring for a 0-5v or RS232 Serial output can be added by the user for outputting to a data logger. This OBDII pass-through capability replaces the traditional AEMnet stream available in the 30-0300 X-Series Wideband AFR Gauge Controller.OBDII CAN-bus OUTPUTThe OBDII output simulates an auxiliary ECU signal when plugged into a vehicle’s OBD port, which requires a unique address from the other ECUs already on a vehicle’s network. AEM’s default OBDII CAN address will work with most popular vehicles and adjustments should not be necessary. However, AEM has provided OBDII address programmability through the buttons on the gauge face if a different address other than the default address is required, allowing users to program ECU #, Parameter Identification (PID), Message Identifier, and Bit Rate. PATENTED X-DIGITAL TECHNOLOGY – It’s The FastestX-Series Widebands are the fastest responding wideband air/fuel ratio controllers in independent testing against 17 other wideband UEGO air/fuel controllers.* The controller’s high speed, patented, X-Digital technology (Patent 9,575,030) ensures no loss of signal fidelity and full transient response, making it able to identify the slightest fluctuations in AFR and output them in full value. WHY RESPONSE TIME MATTERS – Faster response time improves wideband feedback control, and can provide a safer, more powerful and accurate tune. AEM’s Wideband Controllers with X-Digital technology reduce deadtime and can improve the performance of your vehicle through more accurate AFR tuning. Features: X-Series Wideband UEGO AFR Controllers Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors wideband AFR controllers Patented X-Digital wideband technology (Patent 9,575,030) Includes Bosch 4.9LSU wideband UEGO sensor Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires Compatible with vehicle/system voltages up to 16V 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders Can display AFR values in hundredths of % 52mm gauge diameter and slim 0.825″ gauge depth Gauge cup depth only .200″ deep Auto dimming feature User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display Black bezel and black dual faced faceplate included (gauge only, silver bezel/white gauge option sold separately, PN 30-0300-ACC) Locking connectors
